Product Summary
The UPD61110GM-100-UEV is a fully-integrated system processor for DVD recorders or personal video recorders (PVR). Based on NEC Electronics second-generation Enhanced Multi Media Architecture (EMMArchitecture), the UPD61110GM-100-UEV provides the functionality required to realize a high-performance and cost-effective DVD recorder or PVR. The UPD61110GM-100-UEV is ideal for DVD recorders, personal video recorders, home servers
Parametrics
UPD61110GM-100-UEV absolute maximum ratings: (1)Logic Supply Voltage VDD: -0.5 to +7.0 V; (2)Driver Supply Voltage VEE: VDD +0.5 to VDD -40 V; (3)Logic Input Voltage VI1: -0.5 to VDD +0.5 V; (4)FIP Driver Output Voltage VO2 VEE: -0.5 to VDD +0.5 V; (5)LED Driver Output Current IO1: +25 mA; (6)FIP Driver Output Current IO2 -40 (grid): -15 (segment)mA; (7)Power Dissipation PD: 1200 mW; (8)Operating Ambient Temperature Topt : -40 to +85°C; (9)Storage Temperature Tstg: -65 to +150 °C.
Features
UPD61110GM-100-UEV features: (1)DVD-Video, DVD-Video Recording compliant; (2)DVB, MPEG2-TS/PS and MPEG1 compliant codec; (3)DolbyTM digital audio codec, DTSTM audio decoder; (4)High performance, dual MIPS32TM CPU core: 225 MIPS at 187 MHz; (5)High-bandwidth unified memory controller to support external DDR SDRAM; (6)Flexible multi-standard, multi-stream processor; (7)Integrated CSS and CPPM decryption; (8)Integrated CPRM and DES encryption/decryption; (9)Integrated Multi-2 and DVB descrambler; (10)Dual storage interfaces for ATA UDMA100-compliant HDD and ATAPI DVD drive; (11)Real time VBR/CBR encoding; (12)3D noise reduction filter and motion-adaptive de-interlacer; (13)7 graphics planes with dual video scalars; (14)Simultaneous progressive and interlace video outputs: 6 DACs for YPbPr (or YCbCr or RGB), S-Video (Y/C)and CVBS output with support for NTSC, PAL and SECAM; (15)Multi-channel audio outputs: IEC60958 and PCM with support for up to 8 channels; (16)Selectable host bus interface: Generic 16-bit host bus or PCI bus.

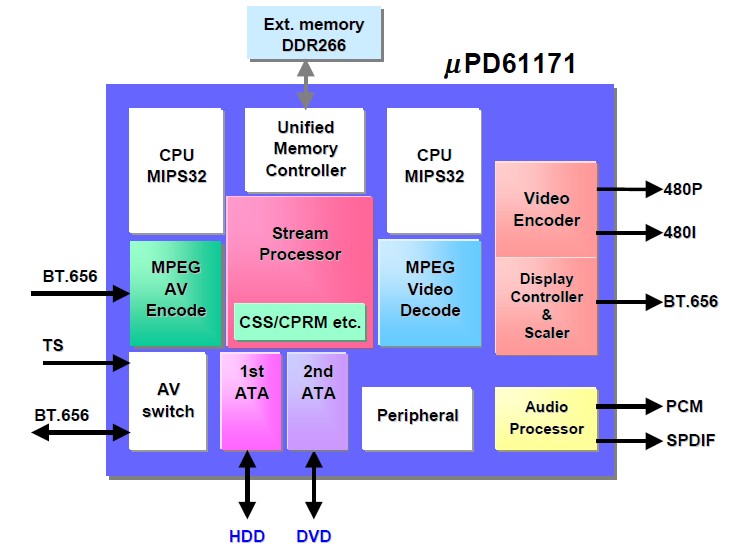

Diagrams
