Product Summary
73K324L-28IHR is a highly integrated single-chipmodem IC, which provides the functions, needed to design a Quad-mode CCITT and Bell 212A compatible modem capable of operation over dial-up lines. The 73K324L-28IHR adds V.23 capability to the CCITT modes of TERIDIAN Semiconductor Corporation 73K224 one-chip modem, allowing a one-chip implementation in designs intended for European markets, which require this added Modulation mode. The 73K324L-28IHR offers excellent performance and a high level of functional integration in a single IC.
Parametrics
73K324L-28IHR absolute maximum ratings: (1) VDD Supply Voltage: 7V; (2) Storage Temperature: -65 to 150°C; (3) Soldering Temperature (10 sec.) :260°C; (4) Applied Voltage: -0.3 to VDD to 0.3V.
Features
73K324L-28IHR features: (1) One chip Multi-mode CCITT V.22bis, V.22, V.21,V.23 and Bell 212A compatible modem data pump; (2) FSK (75, 300, 1200 bit/s) , DPSK (600, 1200 bit/s) , or QAM (2400 bit/s) encoding; (3) Pin and software compatible with other TERIDIAN Semiconductor Corporation K-Series family one-chip modems; (4) Interfaces directly with standard microprocessors (8048, 80C51 typical) ; (5) Serial and parallel microprocessor bus for control; (6) Programmable transmit attenuation (16dB, 1dB steps), and selectable receive boost (+18dB) ; (7) Call progress, carrier, answer tone, unscrambled mark, S1, and signal quality monitors; (8) DTMF, answer, calling, SCT and guard tone generators; (9) Test modes available: ALB, DL, RDL; Mark, Space and Alternating bit pattern generators; (10) 4-wire full duplex operation in all modes.

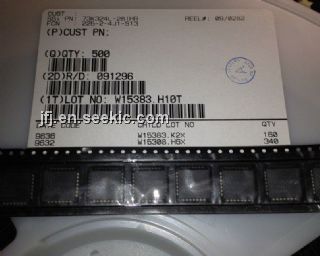

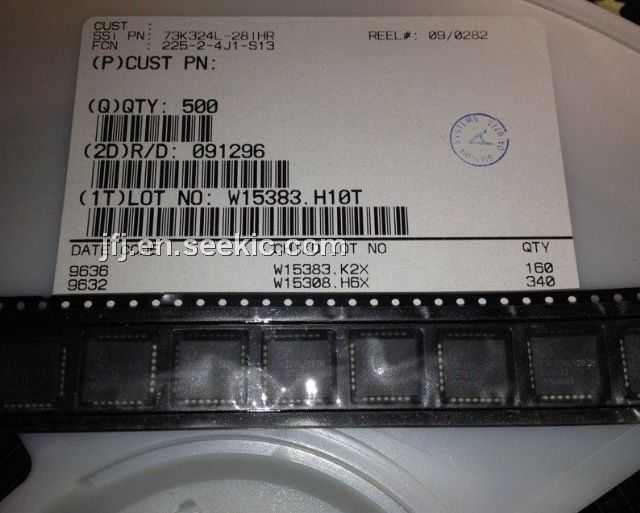

Diagrams
