Product Summary

The AM29LV040B-90EC is a single power supply, 4 Mbit, 3.0 Volt-only Flash memory device organized as 524,288 bytes. The AM29LV040B-90EC offers access times of 60, 70, 90, and 120 ns allowing high speed microprocessors to operate without wait states. The AM29LV040B-90EC requires only a single power supply (2.7V to 3.6V) for both read and write functions.

Parametrics

AM29LV040B-90EC absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 to +150°C; (2) Ambient Temperature with Power Applied: -65 to +125°C; (3) Voltage with Respect to Ground Vcc: -0.5 to +4.0V, A9, OE# (Note 2) : -0.5 to +12.5V; (4) All other pins: -0.5 to Vcc +0.5V; (5) Output Short Circuit Current (Note 3) : 200mA.

Features

AM29LV040B-90EC features: (1) Single power supply operation; (2) Manufactured on 0.32μm process technology; (3) Ultra low power consumption (typical values at 5MHz) ; (4) Flexible sector architecture; (5) Unlock Bypass Program Command; (6) Embedded Algorithms.

Diagrams

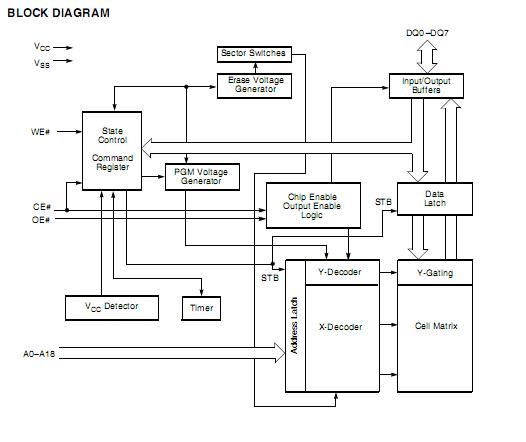

AM29LV040B-90EC Block Diagramt
