Product Summary

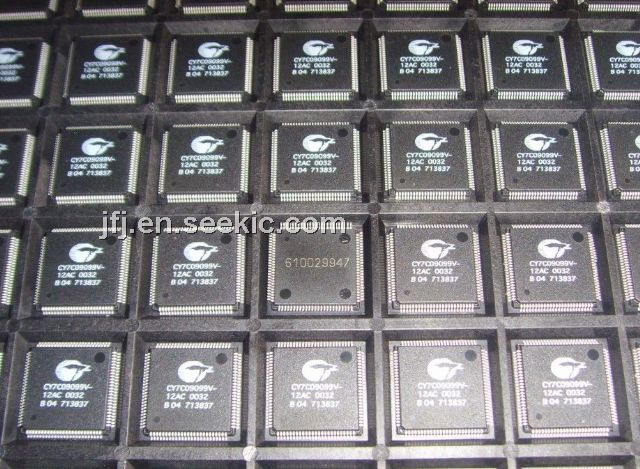

The CY7C09099V-12AC is a high-speed synchronous CMOS 32K, 64K, and 128K x 8/9 dual-port static RAM. Each port of the CY7C09099V-12AC contains a burst counter on the input address register. The CY7C09099V-12AC is available in 100-pin Thin Quad Plastic Flatpack (TQFP) packages.

Parametrics

CY7C09099V-12AC absolute maximum ratings: (1) Storage Temperature: -65 to +150°C; (2) Ambient Temperature with Power Applied: -55 to +125°C; (3) Supply Voltage to Ground Potential: -0.5 to +4.6V; (4) DC Voltage Applied to Outputs in High Z State-0.5V to Vcc +0.5V; (5) DC Input Voltage-0.5V to Vcc +0.5V; (6) Output Current into Outputs (LOW): 20mA; (7) Static Discharge Voltage>2001V; (8) Latch-Up Current>200mA.

Features

CY7C09099V-12AC features: (1) True Dual-Ported memory cells which allow simultaneous access of the same memory location; (2) 6 Flow-Through/Pipelined devices; (3) Pipelined output mode on both ports allows fast 100-MHz operation; (4) 0.35-micron CMOS for optimum speed/power; (5) High-speed clock to data access 6.5/7.5/9/12ns (max.) ; (6) Fully synchronous interface for easier operation; (6) Burst counters increment addresses internally; (7) Dual Chip Enables for easy depth expansion; (8) Automatic power-down; (9) Commercial and Industrial temperature ranges; (10) Available in 100-pin TQFP.

Diagrams

CY7C09099V-12AC Pin ConfigurationCY7C09099V-12AC

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CY7C09099V-12AC
CY7C09099V-12AC


IC SRAM 1MBIT 12NS 100LQFP

Data Sheet

Negotiable
