Product Summary
The EN29PL064-70TIP is a 64/32 Mbit, 3.0 volt-only Page Mode and Simultaneous Read/Write Flash memory device organized as 4/2 Mwords. The EN29PL064-70TIP can be programmed in-system or in standard EPROM programmers A 11.0 volt Vppis not required for write or erase operations. The EN29PL064-70TIP offers fast page access times of 25 ns, with corresponding random access times of 70ns, respectively, allowing high speed microprocessors to operate without wait states.
Parametrics
EN29PL064-70TIP absolute maximum ratings: (1) Storage Temperature Plastic Packages: -65 to +150°C; (2) Ambient Temperature with Power Applied: -65 to +125°C; (3) Voltage with Respect to Ground, Vcc: -0.5 to +4V, Vcc: -0.5V to +12V, A9, OE#, and RESET#: -0.5 to +10.5V, WP#/ACC:-0.5 V to VCC +0.5 V ; (4) Output Short Circuit Current: 200mA.
Features
EN29PL064-70TIP features: (1) Software command-set compatible with JEDEC 42.4 standard ; (2) Provides device-specific information to the system, allowing host software to easily reconfigure for different Flash devices; (3) Erase Suspend / Erase Resume; (4) Program Suspend / Program Resume; (5) Ready/Busy# pin (RY/BY#) ; (6) Hardware reset pin (RESET#) ; (7) Persistent Sector Protection ; (8) Sectors can be locked and unlocked in-system at Vcc level.

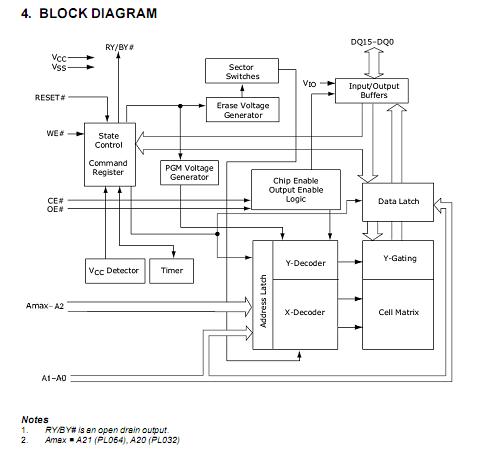

Diagrams
