Product Summary
The FPD87370AXAVS is a timing controller that combines an LVDS single pixel input interface with Reduced Swing Differential Signaling (RSDS) output driver interface of National for VGA, XGA and Wide XGA resolutions. The FPD87370AXAVS resides on the TFT-LCD panel and provides the data buffering and control signal generation for VGA, XGA,and Wide XGA graphic modes.
Features
FPD87370AXAVS features: (1) Reduced Swing Differential Signalling digital bus reduces dynamic power, EMI and bus width from the timing controller; (2) LVDS single pixel input interface system; (3) Input clock range from 25MHz to 85MHz; (4) Drives RSDS Column Drivers at170Mb/s with an 85MHz clock (Max.) ; (5) Virtual 8 bit color depth in FRC/Dithering mode; (6) Single narrow 9-bit differential Source Driver bus minimizes width of Source PCB; (7) Ability to drive VGA, XGA and Wide XGATFT-LCD Systems; (8) Failure detect function in DE mode (Bonding Option) ; (9) CMOS circuitry operates from a 3.0V to 3.6V supply.

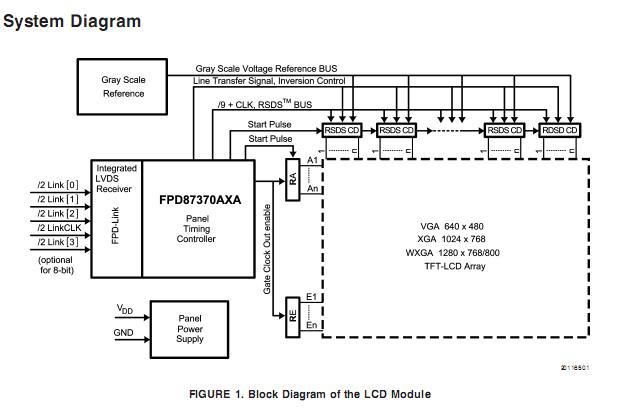

Diagrams
