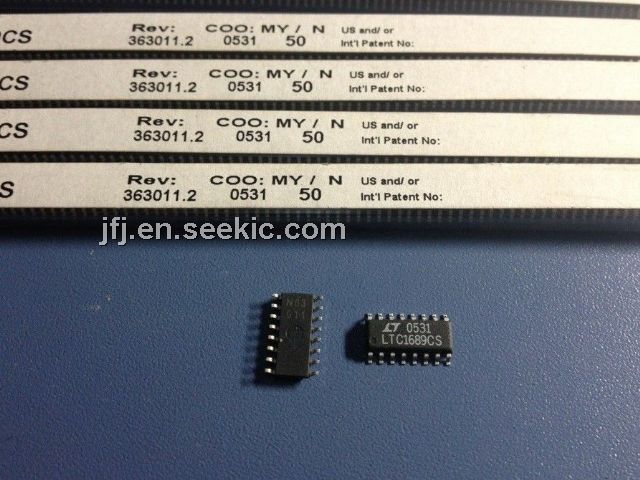

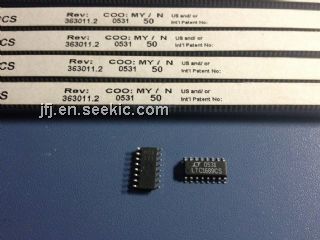

LTC1689CS

quad driver, 5V, 3mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.20~3.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 340 :	3.20 / Piece

PartNumber:: LTC1689CS

Brand:: Linear Integrated Systems - Linear Systems | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Helen Li's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-25

From Other Seller

Part Number:LTC1689CS
US $3.20 - 3.20
Quantity:

piece

Product Summary

The LTC1689CS is an ultrahigh speed, differential bus/line driver that can operate at data rates up to 100Mbps. The outputs of the LTC1689CS are Hot Swap capable, maintaining backplane data integrity during board insertion and removal. The LTC1689C allows all four drivers to be enabled together,while the LTC1689 allows two drivers at a time to be enabled. Applications of the LTC1689CS include: High Speed RS485 Twisted-Pair Drivers, High Speed Backplane Drivers, Complementary Clock Drivers, STS-1/OC-1 Data Drivers and SCSI Drivers.

Parametrics

LTC1689CS absolute maximum ratings: (1) (1) Supply Voltage (VDD) : 7V; (2) Enable Input Voltages: -0.5V to (VDD +0.5V) ; (3) Enable Input Currents: -100mA to 100mA; (4) Driver Input Voltages: -0.5 to (VDD +0.5V) ; (5) Driver Output Voltages: (-12V +VDD) to 12V; (6) Driver Input Currents: -100mA to 100mA; (7) Short-Circuit Duration (VOUT -7V to 10V) : Indefinite; (8) Operating Temperature Range: 0 to 70°C; (9) Storage Temperature Range: -65 to 150°C; (10) Lead Temperature (Soldering, 10 sec) : 300°C.

Features

LTC1689CS features: (1) Ultrahigh Speed: 100Mbps; (2) Guaranteed Propagation Delay: 8ns ±4ns over temperature; (3) Low Channel-to-Channel Skew: 500ps Typ; (4) Hot Swap Capable; (5) Driver Outputs Maintain High Impedance in hree-State or with Power Off; (6) Short-Circuit Protected: 3mA Typ Output Current for an Indefinite Short; (7) Single 5V or 3V Supply; (8) Pin Compatible with LTC486/LTC487.
