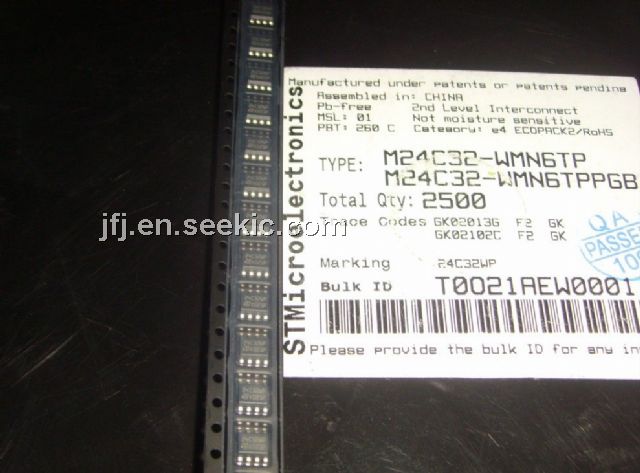

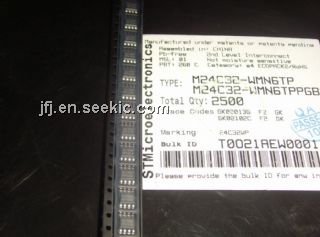

M24C32-WMN6TP

bus EEPROM, -0.5 to 6.5V, 50Ω, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.13~0.13 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2840 :	0.13 / Piece

PartNumber:: M24C32-WMN6TP

Brand:: STMicroelectronics - ST | Pack: SOP | D/C: 10+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Helen Li's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-04-25

From Other Seller

Part Number:M24C32-WMN6TP
US $0.13 - 0.13
Quantity:

piece

Product Summary

M24C32-WMN6TP is a 64Kbit and 32Kbit Serial I2C bus EEPROM. The M24C32-WMN6TP carries a built-in 4-bit Device Type Identifier code (1010) in accordance with the I2C bus definition. The M24C32-WMN6TP behaves as a slave in the I2C protocol, with all memory operations synchronized by the serial clock.

Parametrics

M24C32-WMN6TP absolute maximum ratings: (1) Storage Temperature TSTG: -65 to 150°C; (2) Lead Temperature during Soldering TLE: Compliant with JEDEC Std J-STD-020B (for small body, Sn-Pb or Pb assembly), the ST ECOPACK 7191395 specification, and the European directive on Restrictions on Hazardous Substances (RoHS) 2002/95/EU; (3) Input or Output range VIO: -0.5 to 6.5V; (4) Supply Voltage Vcc: -0.5 to 6.5V; (5) Electrostatic Discharge Voltage (Human Body model) VESD: -4000 to 4000V.

Features

M24C32-WMN6TP features: (1) Two-Wire I2C Serial Interface Supports 400kHz Protocol; (2) Single Supply Voltage: 2.5 to 5.5V; (3) Write Control Input; (4) BYTE and PAGE WRITE (up to 32 Bytes) ; (5) RANDOM and SEQUENTIAL READ Modes; (6) Self-Timed Programming Cycle; (7) Automatic Address Incrementing; (8) Enhanced ESD/Latch-Up Protection; (9) More than 1 Million Erase/Write Cycles; (10) More than 40-Year Data Retention.
