Product Summary

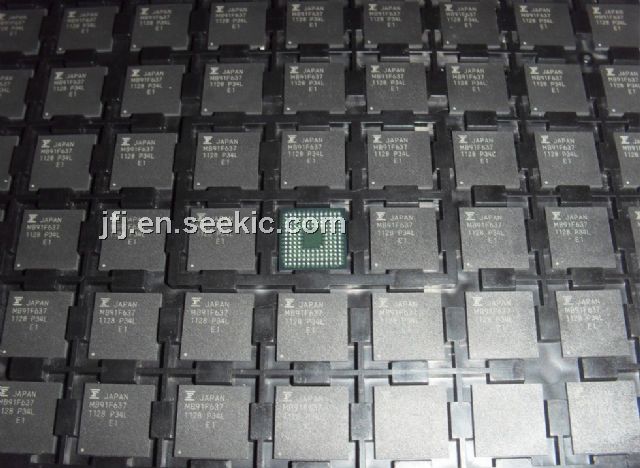

The MB91F637BGL-G-SPE1 is a line of Fujitsu Microelectronics microcontroller based on a 32-bit RISC CPU core that features a variety of peripheral functions for embedded applications that demand high-performance and high-speed CPU processing. The MB91F637BGL-G-SPE1 is based on the FR80 family CPU and is implemented as a single chip.
Parametrics
MB91F637BGL-G-SPE1 absolute maximum ratings: (1)Power supply voltage, VCC: Vss -0.3 to Vss + 4.0 V; (2)Analog power supply voltage, AVCC: Vss -0.3 to Vss + 4.0 V; (3)Analog reference voltage, AVRH: Vss -0.3 to Vss + 4.0 V; (4)Input voltage, VI: Vss -0.3 to Vcc + 0.3( ≤ 4.0)V; Vss -0.3 Vss + 6.0 V; Vss -0.5 Vss + 4.5 V; (5)Analog pin input voltage, VIA: Vss -0.3 Vss + 4.0 V; (6)Output voltage, VO: Vss -0.3 Vcc + 0.3 V; Vss -0.5 Vss + 4.5 V; (7)Maximum clamp current, ICLAMP: -4 to +4mA; (8)Total maximum clamp current, Σ|ICLAMP|: 40 mA.
Features
MB91F637BGL-G-SPE1 features: (1)32-bit RISC, load/store architecture, five-stage pipeline; (2)General-purpose registers : 32-bit × 16; (3)16-bit fixed-length instructions (basic instructions): 1 instruction per cycle; (4)Instructions suitable for embedded applications.

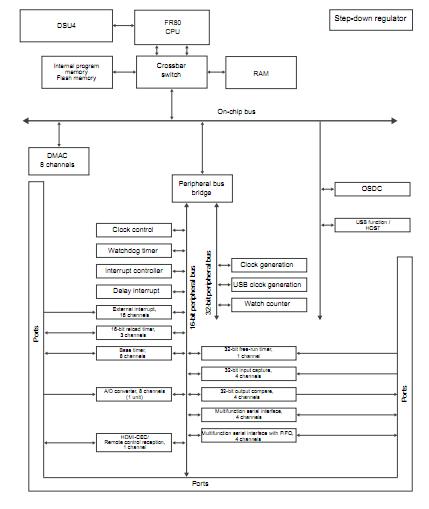

Diagrams
