Product Summary
The MPC866PCZP100A is a versatile single-chip integrated microprocessor and peripheral combination that can be used in a variety of controller applications and communications and networking systems. The MPC866PCZP100A provides enhanced ATM functionality over that of other ATM-enabled members of the MPC860 family.
Parametrics
MPC866PCZP100A absolute maximum ratings: (1)Supply voltage, VDDH: -0.3 to 4.0 V; VDDL: -0.3 to 2.0 V; VDDSYN: -0.3 to 2.0 V; (2)Difference between, VDDL to VDDSYN: 100 mV; (3)Input voltage, Vin, GND: -0.3 to VDDH V; (4)Storage temperature range, Tstg: -55 to +150℃.
Features
MPC866PCZP100A features: (1)The core performs branch prediction with conditional prefetch, without conditional execution; (2)4- or 8-Kbyte data cache and 4- or 16-Kbyte instruction cache; (3)16-Kbyte instruction cache (MPC866P and MPC859P) is four-way, set-associative with 256 sets; 4-Kbyte instruction cache (MPC866T, MPC859T, and MPC859DSL) is two-way, set-associative; (4)with 128 sets; (5)8-Kbyte data cache (MPC866P and MPC859P) is two-way, set-associative with 256 sets; 4-Kbyte data cache(MPC866T, MPC859T, and MPC859DSL) is two-way, set-associative with 128 sets; (6)Cache coherency for both instruction and data caches is maintained on 128-bit (4-word) cache blocks; (7)Caches are physically addressed, implement a least recently used (LRU) replacement algorithm, and are lockable on a cache block basis; (8)MMUs with 32-entry TLB, fully associative instruction and data TLBs; (9)MMUs support multiple page sizes of 4, 16, and 512 Kbytes, and 8 Mbytes; 16 virtual address spaces and 16 protection groups; (10)Advanced on-chip-emulation debug mode.

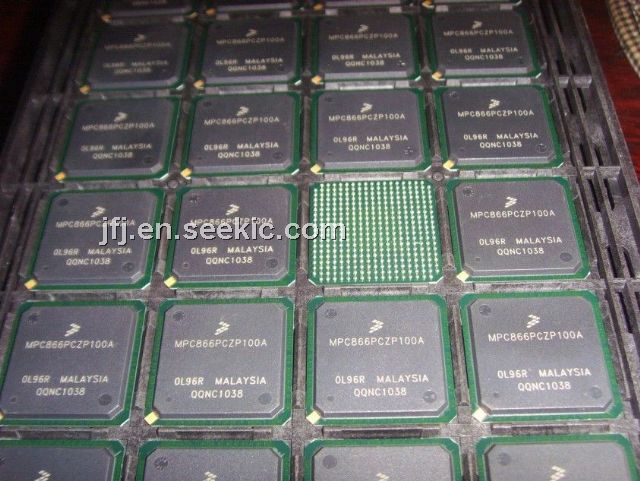

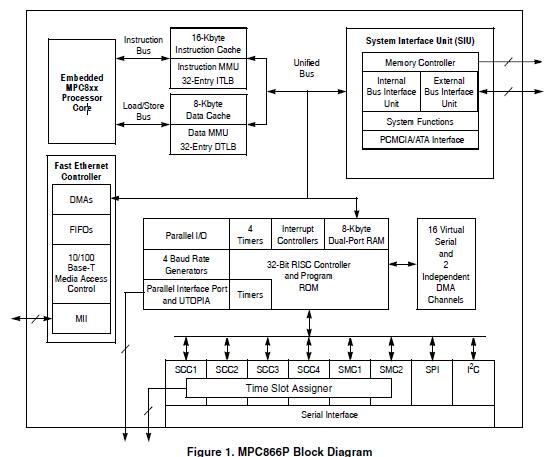

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

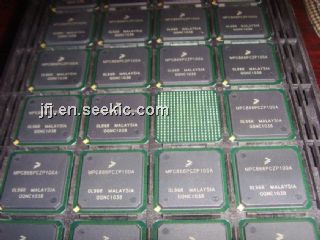

MPC866PCZP100A |
Freescale Semiconductor |
Microprocessors (MPU) POWER QUICC I HIP6W |
Data Sheet |
|
|
|||||||||||
