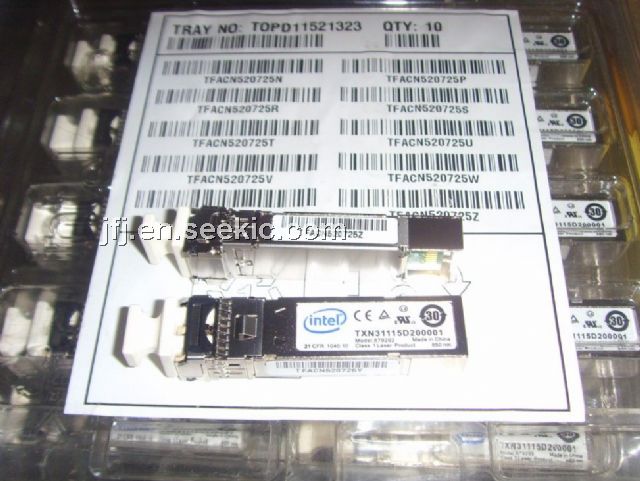

Product Summary

The TXN31115D200001 is a Small Form Factor (SFF) optical transceiver. The TXN31115D200001 is high-performance integrated module for bi-directional communication over Multimode optical fiber. The TXN31115D200001 Quad-Rate 850 nm Optical Transceiver (called hereafter the TXN31015D2 Optical Transceiver) is specifically designed for high-speed Fibre Channel data links at 4.25 Gbps (4x Fibre Channel rate). The TXN31115D200001 Optical Transceiver is also backwards compatible with 2x and 1x Fibre Channel and Gigabit Ethernet rates.

Parametrics

TXN31115D200001 absolute maximum ratings: (1)Storage Temperature Ts: -40 to 85 °C; (2)Soldering Temperature: 260 °C 10 seconds on leads only; (3)Supply Voltage VccT, R: -0.5 to 4 V; (4)Data AC Voltage TD+ and TD: 2.2 Vpp Differential; (5)Control Input Voltage Vi: -0.5 to Vcc + 0.3 V.

Features

TXN31115D200001 features: (1)Compliant with the Fibre Channel FC-PI Standard; (2)4.25/2.125/1.0625 Gbps Fibre Channel and 1.25 Gbps Ethernet Compatible; (3)Compatible with the SFF Multisource Agreement (MSA)Specification; (4)850 nm VCSEL emitter; (5)TTL Signal Detect Output; (6)Transmitter Disable Input; (7)AC-coupled CML Level Input/Output; (8)Single +3.3 V Power Supply; (9)Class 1 Laser Safety Product; (10)IEC/UL 60950-1 Safety Certified; (11)Designed and verified as RoHS 6 compliant; (12)China RoHS compliant with 30-year EFUP; (13)Digital Diagnostics Support.

Diagrams

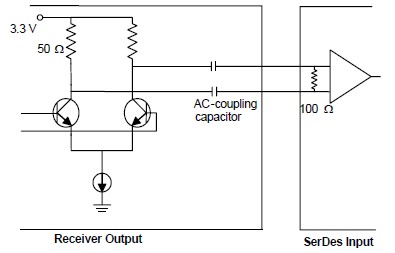

TXN31115D200001 pin connection
