SY100S351FC

SY100S351FC, master/slave flip-flop, 49 mA, 700 MHz, 5.5V, CQFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $11.00~11.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 180 :	11.00 / Piece

PartNumber:: SY100S351FC

Brand:: SYNERGY MICROWAVE CORPORATION - Synergy | Pack: CQFP | D/C: 95+

Availability:: Supply Ability: 0/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Helen Li's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-20

From Other Seller

Part Number:SY100S351FC
US $11.00 - 11.00
Quantity:

piece

Product Summary

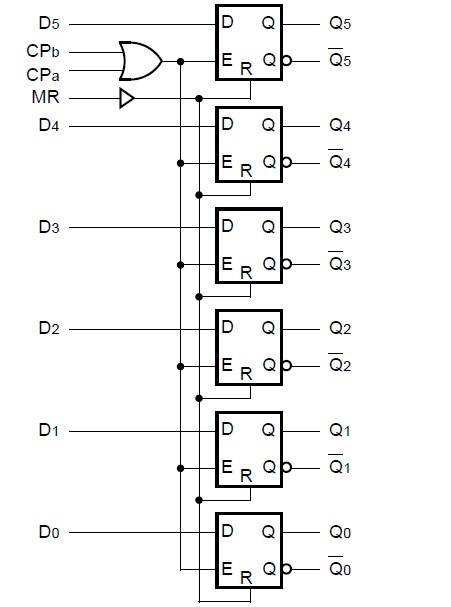

TheSY100S351FC is a six D-type, edge-triggered, master/slave flip-flop with differential outputs, and is designed for use in high-performance ECL systems. The SY100S351FC is controlled by the signal from the logical OR operation on a pair of common clock signals (CPa, CPb). Data enters the master when both CPa and CPb are LOW and transfers to the slave when either CPa or CPb (or both) go to a logic HIGH. The Master Reset (MR) input overrides all other inputs and takes the Q outputs to a logic LOW. The inputs on this device have 75KΩ pull-down resistors.

Parametrics

SY100S351FC absolute maximum ratings: (1)IEE Power Supply Current: –98 to –49 mA; (2)fMAX Toggle Frequency: 700 MHz; (3)VEE: –4.2V to –5.5V.

Features

SY100S351FC features: (1)Max. toggle frequency of 700MHz; (2)Clock to Q max. of 1200ps; (3)IEE min. of –98mA; (4)Industry standard 100K ECL levels; (5)Extended supply voltage option: VEE = –4.2V to –5.5V; (6)Voltage and temperature compensation for improved noise immunity; (7)Internal 75KΩ input pull-down resistors; (8)50% faster than Fairchild 300K; (9)Better than 20% lower power than Fairchild; (10)Function and pinout compatible with Fairchild F100K; (11)Available in 24-pin CERPACK and 28-pin PLCC packages.
