Product Summary
The TMC57128GJG is a monolithic CMOS integrated circuit designed to drive image-area gates (IAG1, IAG2), antiblooming gate (ABG), storage-area gate (SAG), and serial-register gate (SRG) of the Texas Instruments (TIE) TC255 CCD image sensor. The TMC57128GJG interfaces the CCD image sensor to the TI TMC57128GJG ASIC or user-defined timing generator; it receives TTL-input signals from the timing generator and outputs levelshifted signals to the image sensor.
Parametrics
TMC57128GJG absolute maximum ratings: (1)Supply voltage range, VCC: 0 V to 20 V; (2)Continuous total power dissipation at (or below)TA = 25°C: Unmounted device: 1990 mW, Mounted device: 2754 mW; (3)Operating free-air temperature range, TA: –20°C to 45°C; (4)Storage temperature range, TSTG: – 55°C to 125°C; (5)Lead temperature: 1,6 mm (1/16 inch)from case for 10 seconds: 260°C; (6)1,6 mm (1/16 inch)from case for 3 seconds: 350°C.
Features
TMC57128GJG features: (1)TTL-Compatible Inputs; (2)CCD-Compatible Outputs; (3)Adjustable Clock Levels; (4)High-Speed Clear; (5)Serial-Gate Midlevel for CDS Operation; (6)Solid-State Reliability description.

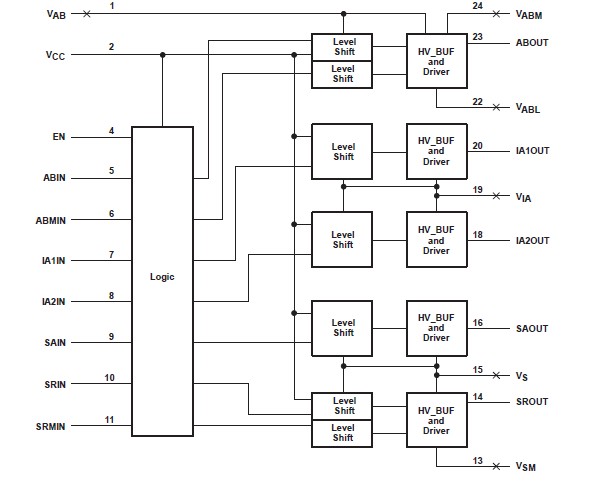

Diagrams
